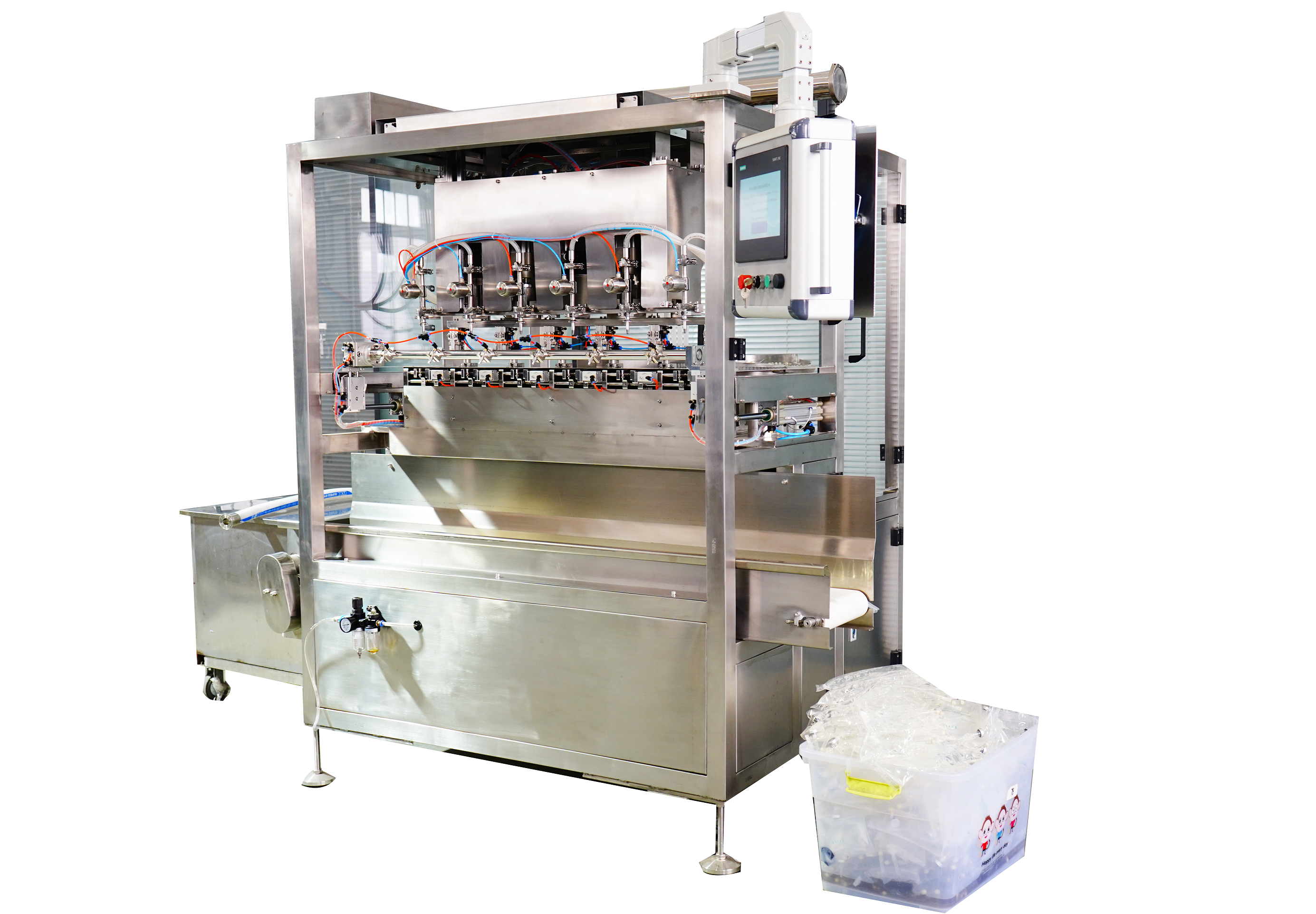

PES-A6 IV Bag Filling-sealing Machine

1. Small used space;. It saves plant space. And easy to Installation. 占地面积小，节省车间空间, 安装方便快捷。 2. Continuous putting bags by worker is for saving operation time, Improve efficiency. 工人可连续上袋，操作时间少，灌装效率高， 3. The Machine is equipped with a total of 6 filling stations, which are automatically filled and sealed by computer program control. The PLC touch screen is easy to operate to meet the different filling needs of customers设备总共带有6个灌装工位，由电脑程序控制自动灌装和封口，PLC触摸屏简易操控，以满足客户不同灌装需求。 4. High filling accuracy. Each filling Nozzel (Head) filling accuracy ≤1±% 高精度灌装，误差范围控制在≤1±% 5. Filling capacity is within Large extent. From 100ml to 5000ml(adjustable)。 灌装容量范围广，从100ml~5000ml（可调） 对于常规500ML输液袋来说，灌装产量可达每小时大约3000袋左右 For a regular 500ML infusion bag, the filling output can reach approximately 3,000 bags per hour. 6. Filling and sealing of a very wide range of bag types made from a similarly. wide range of materials(PP.. PVC . Or other Non-pvc etc) Is possible. 可灌装和封口广泛范围的不同材质的袋子，比如PVC, PP.以及其它非PVC材质袋子等。 7. Machine with function for each filling station ” No bag. No filling-sealing” 机器各灌装工位都带有功能“无袋子不灌装

Category：

Product Center

E-mail

sales@punosi.com

Inquiry
Recommend

Description

. The Main Technical Parameter:

主要技术参数：

1, Power source: AC220V, 50~60Hz

电源：220伏，50~60赫兹



2, Power input: 0.8KW.(Including Vibrating Shaker)

功率：0.8千瓦 (包括振动盘)



3, Working Pressure:

Air Cylinder:  ≥0.6Mpa~0.8 Mpa

Filling(IV fluids):    ≥0.25 Mpa~0.40Mpa(Keep a stable Pressure)

工作压力：气缸 ≥0.6Mpa~0.8Mpa 液体：≥ 0.25~ 0.40Mpa



4, Filling Capacity: 100~5000ml (Adjustable)

  灌装容量范围：100~5000ml （可调节）



5, Filling Speed (with 6 Filling Heads): 2000~2500bags/h aprro (For example:100ml~ 500ml bag) approximately



6, Filling Accuracy: ≤±1%

灌装精度：≤±1%



7, The use of Environment: Temperature: -10 ℃~65 ℃

适用环境温度：-10 ℃~65 ℃ Humidity: ≤85% 湿度：≤85%



8, Machine net weight: 950 kgs 机器净重：950 kgs Approximately



9, Whole Dimension For Machine Equipment Approximately:

. (L) 1700 × (W) 1100 × (H) 1950MM

Keywords: PES-A6 IV Bag Filling-sealing Machine
